A two-component pure epoxy primer. Excellent adhesion to general substrates. Excellent anti-corrosion for various metal substrates and glass fiber reinforced plastics. A good protective coating for various vehicles, machinery and equipment.

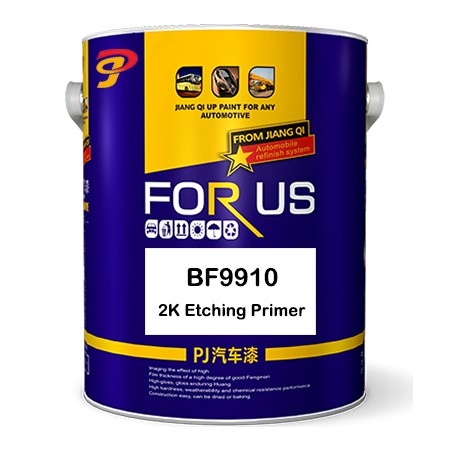

Product name: 2K Etching Primer
Product Numbers: BF9910
Standard packaging: 5KG/20KG
Product Features:
A two-component pure epoxy primer.
Excellent adhesion to general substrates.
Excellent anti-corrosion for various metal substrates and glass fiber reinforced plastics.
A good protective coating for various vehicles, machinery and equipment.
Complementary products and mix ratio
|
BF9910 2K Etching Primer |
: |
BF7740 4:1 Epoxy Primer Hardener |
: |
BF6660 Epoxy Primer Thinner |
|
4 |
: |
1 |
: |
1.8±20% |
Instructions：
1. Mix thoroughly according to the proportion before use, adjust the mixture’s viscosity to 16-18 seconds/4 cups, spray 2 times at 25°C, with the film thickness reaching 25-45μm.
2. Flash dry for 10-15min
Bake at 70-80°C for 60min
Air dry at 25°C for 24h
3. After being mixed, the paint should be stored at 25°C and used within 6 hours.
Things to note：
1. The primer should not be excessively thick, or it might slow down the drying process or reduce the adhesion between the coating layers.
2. Use the complementary curing agent and thinner to achieve the desire results.
3. Do not apply if the temperature is 5°C.
Technical indicators
|
Inspection items |
Technical indicators |
Inspection method |
|
|
Material Status in Containers |
Easy to stir evenly without foreign matter |
GB/T 3186 |
|
|
Fineness, μm |
≤25 |
GB/T 1724 |
|
|
Viscosity, 25°C |
1000-2000 |
GB/ 9751 |
|
|
Solids content (120°C, 2h)% |
≥60 |
GB/T 1725 |
|
|
Storage Stability, Grade |
Precipitability ≥ 8 grade and crusting ≥ 10 grade |
GB/T 6753.3 |
|
|
Viscosity, Coated - 4 cup, 25°C, s |
16-18 |
GB/T 1723 |
|
|
Dryness |
Surface trunk , 25°C |
≤30min |
GB/T 1728 |
|
Hard work, 25°C |
≤24h |
||
|
Drying, 70-80°C |
≤60min |
||
|
Hardness, pencil hardness tester |
≥H |
GB/T 6739 |
|
|
Adhesion, Grid method, Grade |
≤1 |
GB/T 9286 |
|
|
Flexibility,mm |
1 |
GB/T 1731 |
|
|
Impact strength,cm |
50 |
GB/T 1732 |
|
|
Grindability(20 times) |
Easy sanding, non-stick sandpaper |
GB/T 1770 |
|
|
Compatibility with putty |
Good adhesion between layers |
|
|
|
Waterproof,240h |
Non-foaming, non-wrinkling, non-falling |
GB/T 5209 |
|
|
Nitrogen resistance |
No biting, no bleeding |
GB/T 13493.4.18 |
|
|
Damp heat resistance(120h),Grade |
≤1 |
GB/T 1740 |
|
|
Acid resistance(0.05mol/1 H2SO4),24h |
No foaming, no peeling, slight discoloration allowed |
GB/T 9274 |
|
|
Alkali resistance (0.1 mol/1 Na0H),24h |
No foaming, no peeling, slight discoloration allowed |
GB/T 9274 |
|
|
Salt Spray Resistance Series A (240h), Series B (168h), Grade |
≤1 |
GB/T 1771 |
|
Storage：
The product shelf life is 1 year at 25°C. Expired products can be used if tested, at your own risk.#Korean Coatings Exhibition# #Pakistan Coatings Exhibition#
