He topcoat products of different colors can be prepared according to different needs. This product has bright color, high gloss, good freshness, strong covering power and excellent weather resistance. It is applicable to the whole vehicle coating or local repair of various vehicles.

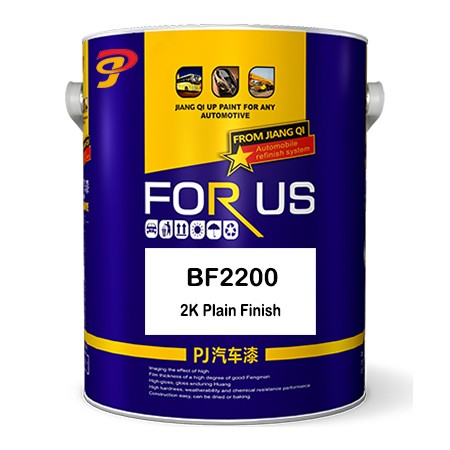

Product name: 2K Plain Finish
Product Numbers: BF2200 series
Standard packaging: 1L/4L
Product Features:
He topcoat products of different colors can be prepared according to different needs.
This product has bright color, high gloss, good freshness, strong covering power and excellent weather resistance.
It is applicable to the whole vehicle coating or local repair of various vehicles.
Complementary products and mix ratio
|
BF2200 series 2K Plain finish |
2 |
|
BF7710A 4:1 Curing agent |
1 |
|
BF6610 Thinner |
0.6±20% |
Instructions
①Mix evenly according to the proportion before use, adjust the construction viscosity to 16-18 seconds / 4 cups, spray 2-3 times at 25°C, and the film thickness is 40-60μm.
②In order to ensure the coating effect, please use curing agent and diluent.
③Different types of curing agent and diluent shall be selected according to different construction temperature and construction environment.
Things to note
①It is not suitable to spray too thick at one time, and each pass needs a certain flash time.
②In order to ensure the coating effect, please use the complementary curing agent and diluent.
③Different types of curing agent and diluent shall be selected according to different construction temperature and construction environment.
Technical indicators
|
Inspection items |
Technical indicators |
Inspection method |
|
|
Material Status in Containers |
Easy to stir evenly without foreign matter |
GB/T 3186 |
|
|
Fineness, μm |
White ≤15 other colors ≤10 |
GB/T 1724 |
|
|
Viscosity, Coated-4 cup,25°C,s |
≥120 |
GB/T 1723 |
|
|
Solids content (120°C, 2h)% |
Type A≥45, Type B≥40 |
GB/T 1725 |
|
|
Ratio (volume ratio) |
Original paint: curing agent = 2: 1 |
|
|
|
Dilute rate (%) |
25-50 |
|
|
|
Working viscosity(coated-4 cup/25°C)s |
16-18 |
GB/T 1723 |
|
|
Dryness |
Surface trunk , 25°C |
≤30min |
GB/T 1728 |
|
Hard work, 25°C |
≤24h |
||
|
Drying, 70-80°C |
≤45min |
||
|
Activation period,25°C,h |
≥4 |
|
|
|
Appearance |
Smooth surface without particles |
Visual inspection |
|
|
colour |
Color Meets Standard Board |
Visual inspection |
|
|
Hiding power, dry film thickness, μm |
25-55 |
GB/T 1726 |
|
|
Gloss 60o |
White ≥ 90 Other color ≥ 92 |
GB/T 9754 |
|
|
Adhesion, Grade |
≤1 |
GB/T 9286 |
|
|
Pencil hardness |
≥H |
GB/T 6739 |
|
|
Flexibility,mm |
1 |
GB/T 1731 |
|
|
Impact resistance ,cm |
50 |
GB./T 1732 |
|
|
Water resistance (Type A 240 h. Type B 120 h) |
Non-foaming, non-wrinkling, non-falling |
GB/T 5209 |
|
|
Gasoline Resistance, Type A (6 h) Type B (4 h) |
Non-foaming, non-wrinkling, non-peeling, slight discoloration allowed |
GB/T 1731 |
|
|
Temperature-resistant degeneration class |
≤2 |
GB/T 13492.5.12 |
|
|
Acid resistance (0.05 mo1 / L sulfuric acid, type A 24 h, type B 12 h) |
Non-foaming, non-wrinkling, non-peeling, slight discoloration allowed |
GB/T 9274 |
|
|
Alkali resistance (0.1 mo1 / L sodium hydroxide, type A 24 h, type B 12 h) |
Non-foaming, non-wrinkling, non-peeling, slight discoloration allowed |
GB/T 9274 |
|
|
Weather resistance (24 months for type A and 12 months for type B in Guangdong) |
There should be no obvious cracking, slight discoloration allowed, loss rate ≤ 20% after polishing |
GB/T 1767 |
|
|
Artificial accelerated aging Type A (1000 h) Type B (600 h) |
There should be no obvious cracking, slight discoloration allowed, loss rate ≤ 20% after polishing |
GB/T 1865 |
|
|
Freshness, Gd value |
0.6-0.8 |
GB/T 13492.5.15 |
|
Note: Type A is high-grade series products, Type B is ordinary series products.
Storage
The product shelf life is 1 year at 25°C. Expired products can be used if tested, at your own risk.
