Different colors of metal base paint products can be prepared according to different needs. This product has strong metal feeling, good arrangement of silver powder (or pearl), strong covering power and good adhesion between coatings. It is suitable for whole vehicle coating or local repair of all kinds of vehicles.

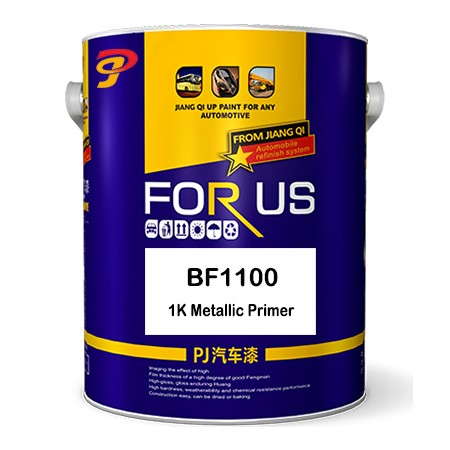

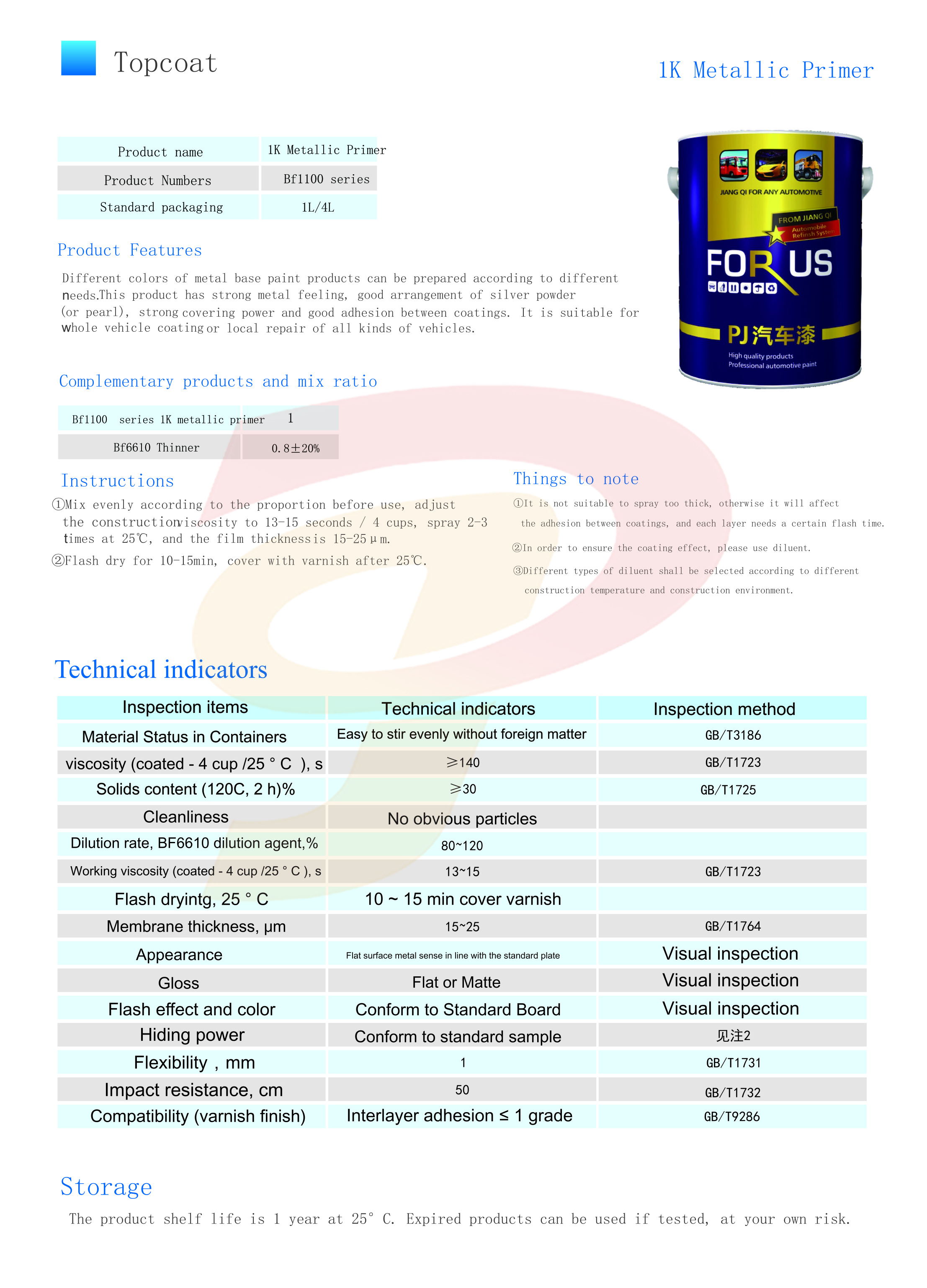

Product name: 1K Metallic Primer
Product Numbers: BF1100 series
Standard packaging: 1L/4L
Product Features:
Different colors of metal base paint products can be prepared according to different needs.
This product has strong metal feeling, good arrangement of silver powder (or pearl), strong covering power and good adhesion between coatings.
It is suitable for whole vehicle coating or local repair of all kinds of vehicles.
Complementary products and mix ratio
|
BF1100 series 1K metallic primer |
1 |
|
BF6610 Thinner |
0.8±20% |
Instructions
①Mix evenly according to the proportion before use, adjust the construction viscosity to 13-15 seconds / 4 cups, spray 2-3 times at 25°C, and the film thickness is 15-25μm.
②Flash dry for 10-15min, cover with varnish after 25°C.
Things to note
①It is not suitable to spray too thick, otherwise it will affect the adhesion between coatings, and each layer needs a certain flash time.
②In order to ensure the coating effect, please use diluent.
③Different types of diluent shall be selected according to different construction temperature and construction environment.
Technical indicators
|
Inspection items |
Technical indicators |
Inspection method |
|
Materian Status in Containers |
Easy to stir evenly without foreign matter |
GB/T 3186 |
|
Viscosity (coated- 4 cup/25°C),s |
≥140 |
GB/T 1723 |
|
Solids content (120C, 2h)% |
≥30 |
GB/T 1725 |
|
Cleanliness |
No obvious particles |
|
|
Dilution rate, BF6610 dilution agent,% |
80-120 |
|
|
Working viscosity (coated - 4 cup / 25°C), s |
13-15 |
GB/T 1723 |
|
Flash dryintg, 25 °C |
10-15 min cover varnish |
|
|
Membrane thickness, μm |
15-25 |
GB/T 1764 |
|
Appearance |
Flat surface metal sense in line with the standard plate |
Visual inspection |
|
Gloss |
Flat or Matte |
Visual inspection |
|
Flash effect and color |
Conform to Standard Board |
Visual inspection |
|
Hiding power |
Conform to standard sample |
|
|
Flexibility,mm |
1 |
GB/T 1731 |
|
Impact resistance, cm |
50 |
GB/T 1732 |
|
Compatibility (varnish finish) |
Interlayer adhesion ≤ 1 grade |
GB/T 9286 |
Storage
The product shelf life is 1 year at 25°C. Expired products can be used if tested, at your own risk.
